Description

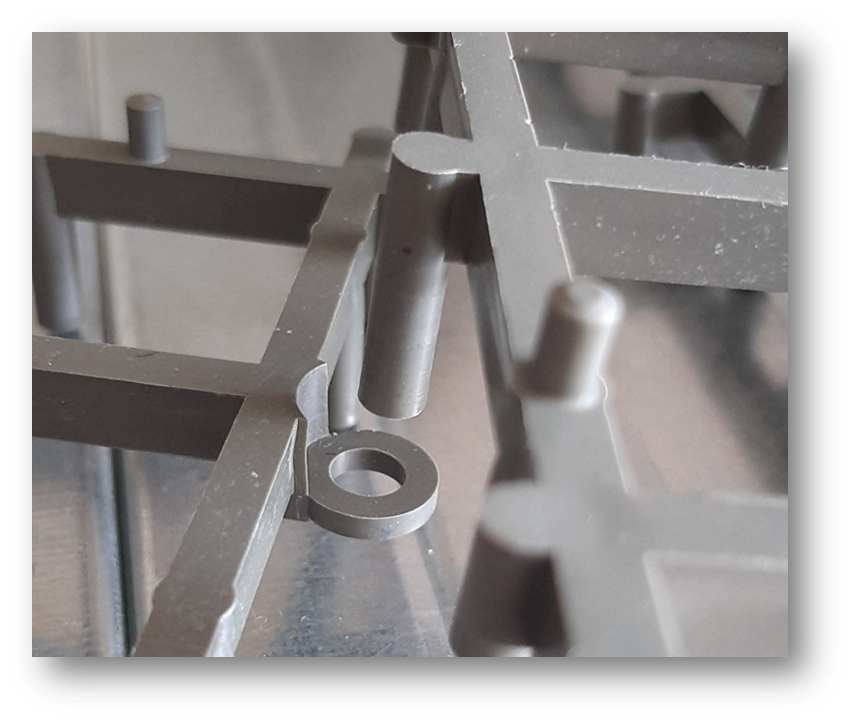

HD-PE product: material formula studied by our laboratories. It is used vertically and horizontally along the metal reinforcement, with double attachment, guaranteeing the right distance from the welded mesh to the formwork. In addition, the product is equipped with a coupling system that allows to join one or more pieces as needed.

Matrix diritti riservati ekp

Additional information

Weight	N/A
Dimensions	240 × 90 mm
Color	dark gray

Data sheet

ORDER FORM
CODE	MODÈLE	UM	CONF.
MTX10-0700CG	H10 240X90	PZ	70
MTX15-0701CG	H15 240X90	PZ	70
MTX20-0702CG	H20 240X90	PZ	70
MTX25-0703CG	H25 240X90	PZ	70
MTX30-0704CG	H30 240X90	PZ	70
MTX35-0705CG	H35 240X90	PZ	70
MTX40-0706CG	H40 240X90	PZ	70
MTX45-0707CG	H45 240X90	PZ	70
MTX50-0708CG	H50 240X90	PZ	70
MTX55-0709CG	H55 240X90	PZ	70
MTX60-0710CG	H60 240X90	PZ	70

Illustrative drawing

DATA SHEET
KG WEIGHT	A mm	B mm	C mm	H mm	KG Box	KG Pallet	PZ Pallet	Material
0,030*	240	90	247	10	2,1	369,2	12 320	PP-HD
0,033*	240	90	247	15	2,3	369,6	11 200	PP-HD
0,036*	240	90	247	2,5	302,4	8400	PP-HD
0,040*	240	90	247	25	2,8	291,2	7280	PP-HD
0,044*	240	90	247	30	3	271,04	6160	PP-HD
0,046*	240	90	247	35	3,2	257,6	5600	PP-HD
0,048*	240	90	247	40	3,4	246,9	5040	PP-HD
0,050*	240	90	247	45	3,5	224	4480	PP-HD
0,058*	240	90	247	50	3,9	223,4	3920	PP-HD
0,070*	240	90	247	55	4,9	235,2	3360	PP-HD
0,080*	240	90	247	60	5,60	224	2800	PP-HD
